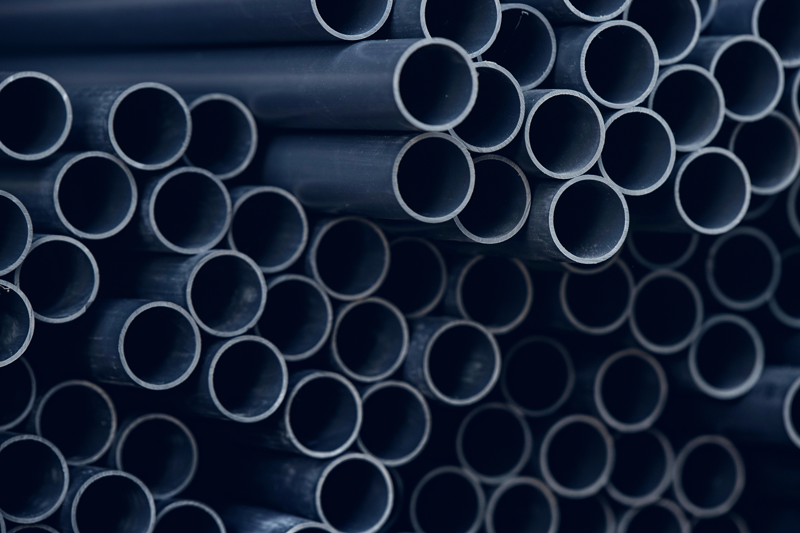

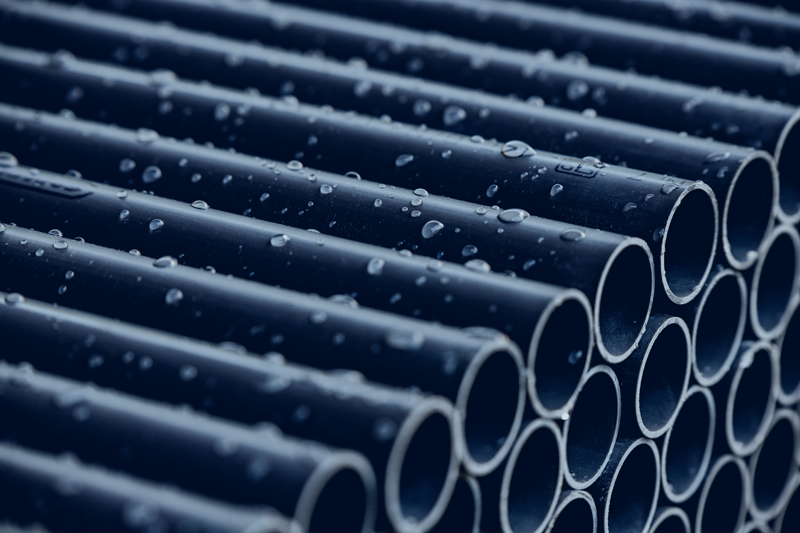

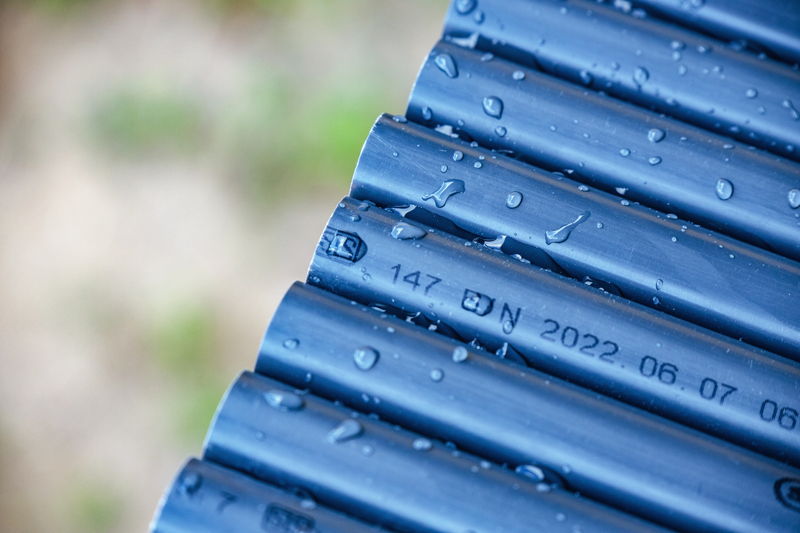

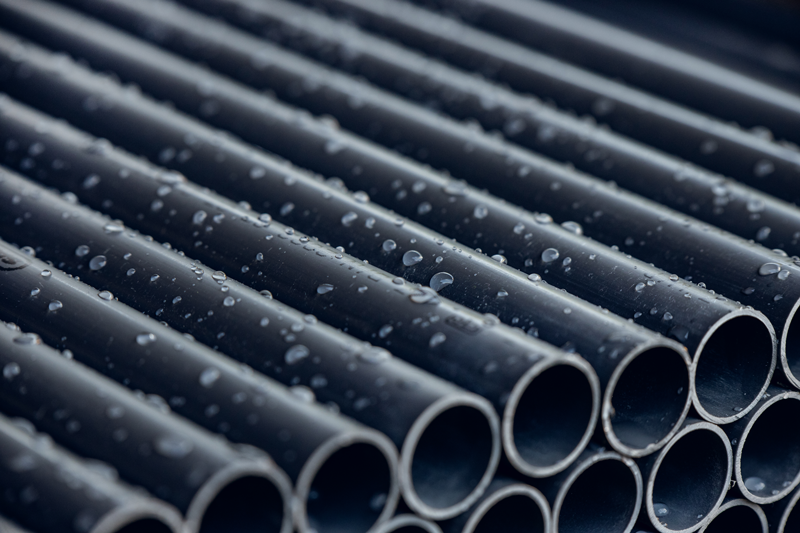

Pressure Pipes

Pressure Pipes

Product Features

  • All Samson PVC pressure pipes are Compiled to SLS standard.

  • Samson PVC pressure pipes are manufactured under ISO 9001 quality management system.

  • All Samson PVC pressure pipes are manufactured using virgin materials.

  • These PVC pressure pipes has high crush & burst strength.

  • High pressure pipes has superior resistance to chemical corrosion ensures long lifespan. Low maintenance due to high abrasion resistance.

  • High pressure pipes has superior resistance to chemical corrosion ensures long lifespan. Low maintenance due to high abrasion resistance.

  • Easy to handle, transport & install

Pressure Pipe

Dimensions of Samson PVC Pressure Pipe

Nominal Diameter (dn) Mean Outer Diameter d em Wall thickness (t) Length (L)
S-12.5 S-10 S-8 S-6.3 S-5
SDR 26 SDR 21 SDR 17 SDR 13.6 SDR 11
PNT 7 PNT 9 PNT 11 PNT 14 PNT 18
Min Max Min Max Min Max Min Max Min Max Min Max
20 20.0 20.2 - - - - - - 1.5 1.9 1.9 2.3 4000
25 25.0 25.2 - - - - 1.5 1.9 1.9 2.3 2.3 2.8 4000
32 32.0 32.2 1.5 1.9 1.6 2.0 1.9 2.3 2.4 2.9 2.9 3.4 4000
40 40.0 40.2 1.6 2.0 1.9 2.3 2.4 2.9 3.0 3.5 3.7 4.3 4000
50 50.0 50.2 2.0 2.4 2.4 2.9 3.0 3.5 3.7 4.3 4.6 5.3 4000
63 63.0 63.3 2.5 3.0 3.0 3.5 3.8 4.4 4.7 5.4 5.8 6.6 4000
75 75.0 75.3 2.9 3.4 3.6 4.2 4.5 5.2 5.6 6.4 6.8 7.7 4000
90 90.0 90.3 3.5 4.1 4.3 5.0 5.4 6.2 6.7 7.6 8.2 9.3 4000

PNT - Nominal Pressure for temperature at 30°C

Note :- The preferred nominal length would be 4m or 6m which does not include the depth of stock.

Nominal Diameter (dn) Mean Outer Diameter d em Wall thickness (t) Length (L)
S-16 S-12.5 S-10 S-8 S-6.3
SDR 33 SDR 26 SDR 21 SDR 17 SDR 13.6
PNT 7 PNT 9 PNT 11 PNT 14 PNT 18
Min Max Min Max Min Max Min Max Min Max Min Max
110 110.0 110.4 3.4 4.0 4.2 4.9 5.3 6.1 6.6 7.5 8.1 9.2 6000
160 160.0 160.5 4.9 5.6 6.2 7.1 7.7 8.7 9.5 10.7 11.8 13.2 6000
225 225.0 225.7 6.9 7.8 8.6 9.7 10.8 12.1 13.4 15.0 16.6 18.5 6000

Available Diameters, Pressure Classes and Types

Nominal Diameter PNT 7 PNT 9 PNT 11 PNT 14 PNT 18 Standard Length + / -
20 4m
25 4m
32 4m
40 4m
50 4m
63 4m
75 4m
90 6m
110 6m
160 6m
225 6m

Plain Ended Pipes

One End Socketed for Rubber Ring Joint

One End Socketed for Solvent Cement Joint
