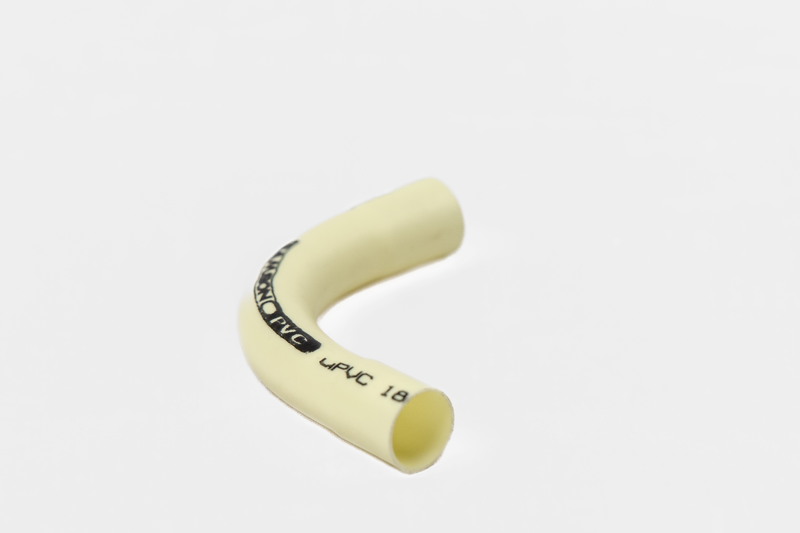

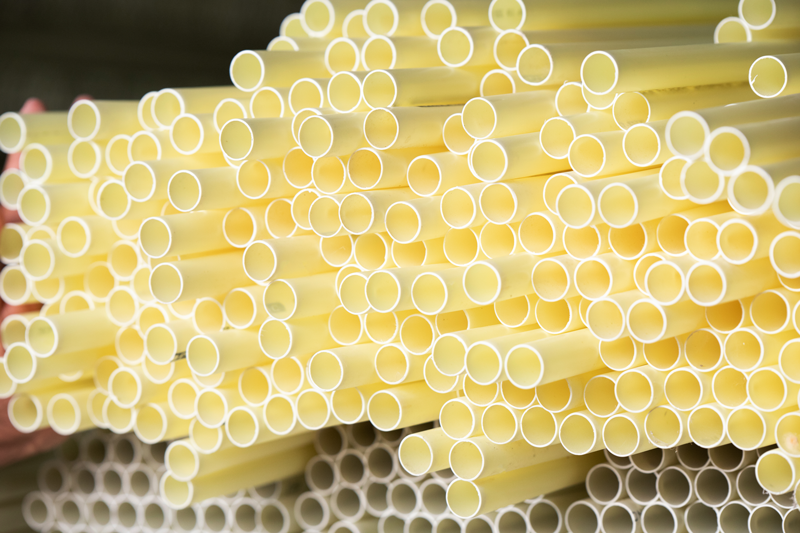

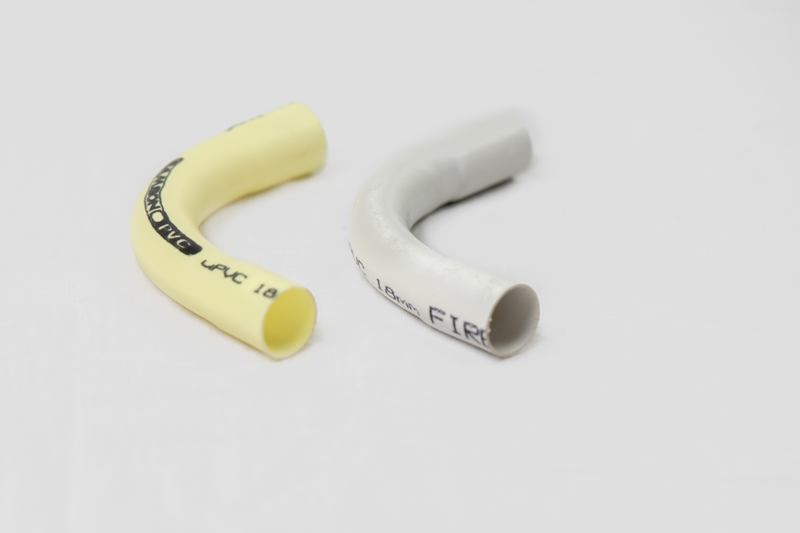

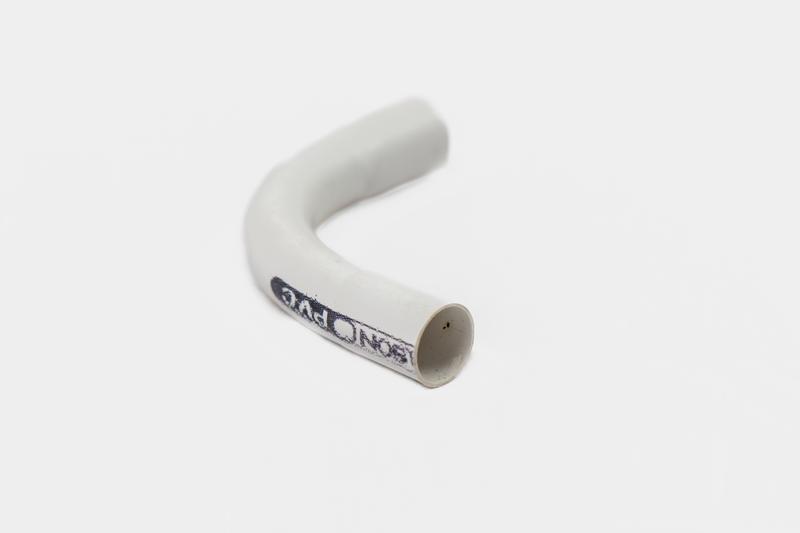

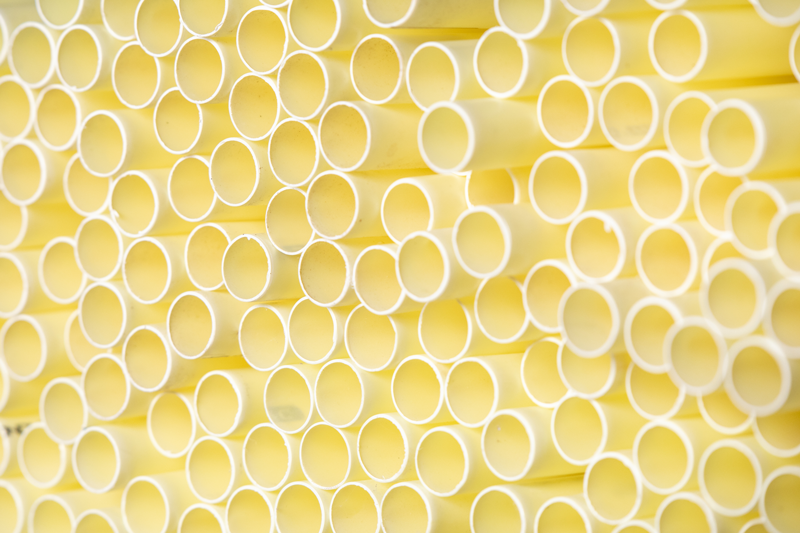

Conduit Pipes
Samson PVC & Samson Poweguard electrical Conduit pipes are produced with specially formulated compounds which are electrical and fire resistant. Complied to SLS standard our PVC conduit pipes are Suitable for both household & Industrial applications. Our conduit pipes can be used for open & concealed wiring in commercial, industrial & Residential buildings as well as Data & Telecommunication industry. Our PVC conduit pipes are manufactured to provide a smooth surface that allows wires to be pulled through easily & without fear of damaging the wiring insulation.
Our conduit pipes are available in both White & Yellow In colours.
Advantages
-
Non-Conductive – Good Insulation, able to resist up to 2Kv.
-
Fire resistance – self- extinguishing, do not support combustion.
-
Corrosion resistance- resistance to acids, bases & salt assuring a lower maintenance cost & a longer performance life.
-
Impact strength- resistance to compression & impact.
-
Attracting appearance- even color, good appearance, suitable for indoor & outdoor installation
-
Easy to install- light weight, easy to transport, handle & install.
Size (Inches) | Outer Diameter (mm) | Wall Thickness (mm) | Weight /ft (grm) | |||
Min | Max | Min | Max | Min | Max | |
½ | 17.0 | 17.3 | 0.8 | 1.05 | 20 | 35 |
¾ | 21.2 | 21.5 | 1.2 | 1.4 | 35 | 45 |
1 | 26.6 | 26.9 | 1.3 | 1.5 | 45 | 60 |
